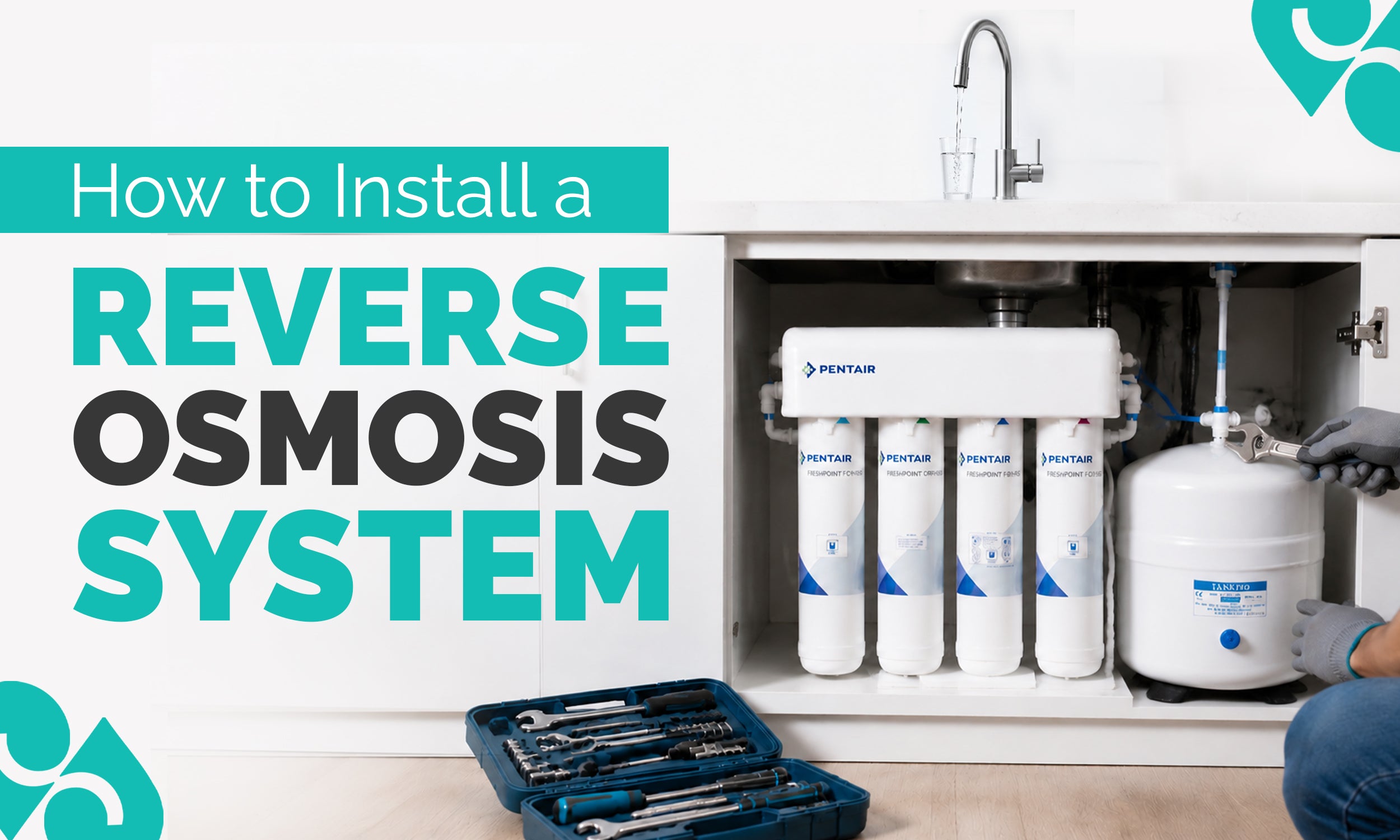

How to Install Reverse Osmosis System: Step-by-Step DIY Guide (2026)

RO system installation may sound complicated, but an average homeowner can complete this project with no prior experience. Installing a reverse osmosis system takes 2–4 hours with basic tools. The core steps include shutting off water, installing a feed water adapter, mounting the RO faucet, installing the drain saddle, mounting the RO assembly, connecting the tank (or power for tankless), running tubing, pressure testing, and flushing before first use.

The process is fairly straightforward, especially when you break it into manageable steps. We'll guide you through all the steps for both tankless and tank-style RO systems. Read on to learn what’s required, mistakes to avoid, and when to call for professional help.

Before You Start: Prep Checklist

Before you install a reverse osmosis system, take some time to prepare the location and confirm its suitability. With this precaution, you can prevent leaks, delays, and expensive damage or rework in the future.

Follow this pre-installation checklist for a seamless setup.

1. Measure the space under your sink. A tank-style system needs room for the storage tank and the filter manifold, with some room left over for maintenance access. Tankless systems need the space of a shoebox, but there should be proper clearance for filter replacements.
2. Check for existing faucet holes or plan to drill one. Your sink may already have an unused faucet hole; if not, drill one for the RO faucet.
3. Verify that the cold water shutoff valve is accessible. This valve should work properly and be easy to maneuver after RO installation. It supplies water to the RO systems, so you need to completely close in before installation.
4. Check the water pressure. Most reverse osmosis systems need 40-100 psi to perform correctly. If your water pressure falls below this range, an electric booster pump or permeate pump is required.
5. Check local plumbing codes for air-gap faucet requirements for your municipality.
6. For tankless systems, ensure that a Ground Fault Circuit Interrupter (GFCI) is within 3-4 feet of the unit. This is necessary for preventing water electrocution since it immediately cuts power if there’s a dangerous ground fault or leakage due to water exposure. A GFCI outlet is a life-saving electrical device that cuts power within 1/40th of a second if it detects electricity leaking toward water or a person.
7. When unboxing the system, compare each component to the included checklist and confirm that everything is included in the package.

Tools & Materials You'll Need

RO system installation usually doesn’t require specialized plumbing equipment. Before starting this installation, make sure you have the following items:

• Adjustable wrench
• Phillips screwdriver
• Flathead screwdriver
• Power drill with drill bits
• 7/16" drill bit for faucet hole
• 1/4" drill bit for drain saddle
• Teflon tape
• Utility knife for trimming the tubing
• Measuring tape
• Bucket (to catch the residual water)
• Towels
• Safety glasses

If you’re drilling a hole in granite or quartz countertops, a diamond-tipped bit is usually necessary. For more filtration upgrades, check out illi water’s whole-home water treatment systems or under-sink filtration solutions paired with RO systems for overall better water quality in your home.

Part 1: How to Install a Tank-Style RO System (10 Steps)

Tank-style RO systems are currently the most popular option for residences. They are dependable, affordable, and don’t need electricity to run. Instead, the model has membranes that filter the water pushed through them and a pressurized tank to store the results.

Even without experience, most homeowners can install a reverse osmosis system in around 2-4 hours. The steps below will take you through the process:

Step 1 : Shut Off the Cold Water and Drain the Line

1. The first step is finding the cold water shutoff valve beneath your sink and turning it off (this usually requires giving it a clockwise turn).
2. Then, open the faucet to release pressure in the water line.
3. Be sure to put a towel and bucket under the shutoff valve. This precaution will catch any residual water in the pipe when the supply line is disconnected in the next step. If you skip this step, the residual water might soak your cabinet’s interior.
4. Before moving to the next step, let all the water fully drain out of the line.

Step 2: Install the Feed Water Adapter

1. Once the water has drained, use an adjustable wrench to disconnect the cold water supply line from the shutoff valve.
2. Then, install the feedwater adapter (included in the system package) between the supply line and valve. The adapter will supply untreated cold water to the RO system.
3. Wrap the threaded connections with Teflon tape where needed, then securely reconnect the supply line.
4. Tighten the connection. Keep your force firm but controlled. Too much force would crack the plastic threads or damage the washers.

Step 3: Mount the RO Faucet (Drill If Needed)

1. Your sink may already have an unused hole available, usually for installing soap dispensers or sprayers. If not, you'll have to drill a 7/16" hole in a flat space on the countertop or sink deck.
2. If your sink is stainless steel, a standard metal bit in the drill will probably be fine.
3. For materials like natural stone, quartz, or granite, a diamond drill bit and slow speeds are necessary. Cracks in such countertops can be very expensive to repair/replace, so you might want to get a professional in for this part.
4. After the drilling, install the faucet with the included mounting hardware. Ensure that the faucet is sitting securely with no jiggling or wobbling.

Step 4: Install the Drain Saddle

The drain saddle connects the RO system’s drain line to the sink’s drain pipe.

1. To install the saddle, you will position it on the vertical drain pipe above the P-trap and also above any dishwasher or garbage disposal connection.
2. Then, drill a 1/4" hole on one side of the drain pipe and align the saddle opening with this hole.
3. Tighten the saddle’s clamps and make sure they’re even and secure. This step is important, especially the placement of the drain saddle. Incorrect placement can lead to backflow problems and unpleasant odors.

Step 5: Mount the RO Manifold

1. Select a location on your cabinet wall for the filter manifold to hang vertically. Make sure there’s enough room under this space for filter changes and regular replacements. There should be at least 3 inches of clearance below the cartridges.
2. Once you’ve selected the location, mark the screw positions and drive in the mounting screws.
3. Hang the manifold and see that it’s secure. Many homeowners find the best place to be near their cabinet’s front sidewall, where the space is easily accessible for maintenance.

Step 6: Connect and Verify Storage Tank Pressure

1. Wrap Teflon tape to secure the storage tank nipple threads, then tighten the tank valve in place by hand.
2. Before you connect the tank to the system, check the empty tank pressure using a low-pressure tire gauge. The reading should be around 5-7 psi (pounds per square inch) for an empty tank. This step might be overlooked during reverse osmosis installation, but it’s crucial to maintain correct pressure.
3. If the reading is off, use a bike pump to inflate or deflate the pressure to the right specifications. A low tank pressure means a weak RO water flow, while a too-high pressure leads to damaged pipes and premature system failure.
4. Placement and proper tightening are also important. Remember, overtightening can cause the plastic threads to crack.

Step 7: Run the Color-Coded Tubing

Most reverse osmosis systems use 4 colors of 1/4" tubing to make installation simpler. The usual colors include:

• Red or white tubing: feed water supply from the cold line to the manifold
• Blue or yellow tubing: filtered water to the faucet
• Green tubing: tank line from manifold to tank
• Black tubing: drain line from manifold to drain saddle

Complete the connections according to the included diagram: don’t try to guess what goes where. The push-fit connections will go in until you feel a second click: pull the tubing gently to make sure it’s secure.

Use the utility knife to ensure clean square cuts. If the tubing ends are crushed or angled, slow leaks can occur.

Step 8: Pressure Test

1. It’s now time to turn the cold water back on, but very slowly.
2. Open the storage tank valve and check each connection for any leaks, especially in the tank fitting, drain saddle, and feed adapter.
3. A single drip might signal a loose thread or unseated fitting. Immediately correct such problems by researching the tubing of re-tightening the fittings.

Step 9: Sanitize and Flush (Three Full Tanks)

Your system is installed, but don’t drink from it yet! You still have to flush the system thoroughly and sanitize it. For new models, most manufacturers recommend adding a little food-grade hydrogen peroxide or unscented household bleach (if the instructions allow it) to the pre-filter housing.

This step will sanitize the internal components of the RO system as well as the membranes and tubing.

After the sanitization, open the RO faucet and fill the tank, then drain. Fill it again and drain. Repeat these steps a few times. This way, you’ll have flushed the system three times with clean water.

The flushing step will remove the sanitizing agent, carbon fines, and any manufacturing residues. Only start drinking water from the system after the third full drain.

Step 10: Final Leak Check and Done

1. Check the RO system again around 24 hours after the installation.
2. Recheck each connection and fitting: a slow drip won’t be immediately apparent right after installing.
3. One helpful hack here is to put dry paper towels under each fitting and leave them overnight. If they’re still dry the following day, the installation is a success!

Part 2 : How to Install a Tankless RO System

Tankless RO systems are becoming more popular among homeowners aiming for better water quality. It isn’t surprising, as they save you cabinet space and provide faster water flow. Unlike the tank systems, though, they do utilize electricity to give you filtered water whenever required.

A tankless RO water filter system installation is similar to the tank model, but there are several essential differences you should be aware of:

The installation process is similar overall, but there are several important differences. Let’s have a look at them now:

Key Difference #1: You Need a GFCI Outlet

Tankless RO systems use a small internal electric pump to power the filtration system and provide smart monitoring features. To provide the electricity for this purpose, you need a Ground Fault Circuit Interrupter (GFCI) outlet within 3-4 feet of the installation. If there’s no such outlet under your sink, you’ll have to call in an electrician to install one. Installing a GFCI outlet may cost around $150-$350, depending on your location and requirements. This is usually the highest cost incurred for under-sink reverse osmosis system installation for tankless models, so budget accordingly.

Key Difference #2: Smaller Footprint, No Tank to Mount

Tankless units are space-saving: they’re around the size of a regular shoebox. There’s no storage tank to make room for either, which frees up your under-sink space. This feature is the top reason why homeowners with modern kitchens prefer the tankless RO system option.

The systems mount horizontally or vertically according to their manufacturer’s instructions. If you have a certain preference, choose the model accordingly, or get in touch with illi water for better guidance.

Key Difference #3: Feed Water and Drain Connections

Tankless systems utilize the same setup as traditional tank models, with a drain saddle and feed water adapters. However, tankless RO setups discharge wastewater more quickly, so the drain saddles need to be very firm and secure.

If they’re poorly installed, the drain saddles may leak and cause major water damage. They leak more quickly than tank systems, so it’s best to be alert about this aspect of the setup.

Key Difference #4: Faucet with Smart Display (Optional)

Many tankless systems have smart faucets that display indicators for TDS (total dissolved solids) or filter life. These are optional, but many homeowners find them useful for regular updates and maintenance reminders.

The installation for these faucets is almost the same as standard models, with just an additional thin signal wire connecting the faucet and main unit. You can route this wire alongside the water tubing and start getting smart features immediately upon installation.

Key Difference #5: Power On and Auto-Flush

Once you’ve connected all the tubing and turned the water back on, restore the water pressure and plug in the unit to the GFCI outlet. Most tankless RO models start the self-flush cycle automatically, which takes around 5-20 minutes.

Keep an eye out for error codes during the startup process. If any occur, consult the instruction manual to resolve them. After the automatic flush is over, we recommend manually flushing the system a few more times before you start drinking from it.

What NOT to Do with a Tankless System

 A tankless reverse osmosis water filter installation is beginner-friendly, but preparation can help you get it absolutely right the first time around. Here are some common mistakes to avoid when you're installing your system:

• Don’t unplug the unit if you're going on an extended trip. Unplugging for 1-2 weeks can lead to the internal membrane drying out. If you have to travel for some time, there's usually a vacation flush mode available. Consult our customer service for more guidance about RO system care during travel.
• Don’t install the system in unheated spaces: tankless systems can freeze up faster than tank-attached models. The electric pump can crack if the temperature plunges too low.
• Don’t ignore error codes: more tankless systems can self-diagnose. Look up the error code in your instruction manual before contacting the manufacturer’s customer support.
• Don’t forget the GFCI outlet requirement: it may be an additional investment, but a very necessary one. Remember, a wet environment plus electricity without GFCI will result in a serious safety hazard.

Tank vs. Tankless: Installation Comparison

Advanced Installation Scenarios

Certain RO system installations require more advanced planning due to appliance connections, water pressure issues, or layout. Let’s see how the RO systems are installed in such advanced scenarios:

Installing in a Basement (Distance Considerations)

If you don’t have enough space under the sink, our tank-style RO system can be set up in a basement. The key rule here is to keep the total tubing run from the RO unit to the faucet less than 10-12 feet.

This length ensures that the water pressure stays suitable and gives a proper flow. If this tubing length isn’t possible, you may need to add a permeate pump to establish enough pressure.

If you do go down this route, remember that your basement must be heated. When the temperature is below freezing, it can cause permanent damage to the tubing, membranes, and pump components.

Connecting Your RO System to a Fridge/Ice Maker

Homeowners can connect the filtered water from their RO unit to the water dispenser and ice dispenser in their refrigerator. You’ll need a 1/4" push-fit tee for this purpose, with the same rule as the basement installation: the tubing distance should be less than 12 feet for proper pressure and performance.

Again, use a booster pump if your connection line from the unit to the fridge is too long. The effort is worth it, since RO-fed refrigerators give you noticeably cleaner drinking water and better-tasting ice!

Installing with Low Water Pressure (Permeate / Booster Pumps)

Low water pressure in your home? It’s problematic, but setting up an effective RO system is still possible! If the pressure is below 40 psi, a standard RO setup will only waste a lot of water and give a slow output. There are two solutions here: a permeate pump or an electric booster pump.

• A permeate pump costs around $80-$150, installs inline, and doesn’t require electricity. It improves water efficiency using drain-line pressure.
• An electric booster pump requires a nearby GFCI outlet and works by active pumping to increase the feed pressure. It costs around $150-$300, depending on the model. Before investing in either pump, however, test your home water pressure using a $15 hose-bib pressure gauge. The result will determine which upgrade you need.

Air-Gap vs. Non-Air-Gap Faucets (Check Your Local Code)

Some Canadian municipalities require RO setups to use air-gap faucets. These prevent contaminated drain water from washing back into the system in case of a drain clog. With air-gap faucets, you have a tiny visible gap in the faucet body and need an extra drain tube.

Since non-air-gap faucets are a simpler and more common option in residential installations, they’re the usual option in illi water systems. Before you choose any RO system, check your local plumbing codes. Some inspectors may fail any installations that don't use air-gap faucets. If this is the case, you may have to get an upgrade.

7 Common RO Installation Mistakes to Avoid

Installing a reverse osmosis system is possible for a beginner,  but it helps to know what mistakes you should avoid. Read up on the most common blunders below so you know what not to do:

1. Drilling Through Granite Without a Diamond Bit

Countertops made of granite, natural stone, or quartz should be drilled using specialized diamond-tipped bits. A standard masonry or metal bit can permanently crack the surface and cause irreversible damage.

You’ll incur high expenses when getting these countertops repaired. Even after professional restoration, the damage may remain visible. If you’re not ready to drill into stone, get a professional plumber or countertop specialist to complete this step.

2. Installing the Drain Saddle Below the P-Trap

The drain saddle should always be situated above the P-trap on the vertical section of your drainpipe. If you install it below the P-trap, there’s a higher risk of wastewater backflow into the RO system. If this happens, you’re more likely to experience contamination and unpleasant odors.

Incorrect drain saddle installation can also compromise drainage efficiency during the filtration process. Before you start, check the saddle position again and ensure that it’s above the garbage disposal or dishwasher connections to control the wastewater flow.

3. Overtightening Plastic Fittings

It’s common for beginners to overtighten the plastic fittings or threaded connections while installing a reverse osmosis system. You’re not working with metal plumbing here: the plastic threads can crack under excessive pressure.

In fact, many leaks in RO systems come about due to the fittings being tightened too hard. When you tighten the connections, use a firm but gentle hand. The usual rule of thumb is a quarter turn past the hand-tight stage. If the leaking continues, inspect the O-ring or reseat the tubing.

4. Skipping the Flush Cycles

Flush cycles are important after you install a reverse osmosis water filter. The new membranes and filters contain preservatives, carbon fines, and manufacturing residues (usually harmless) that should be removed before you drink the filtered water.

If you skip the flush cycles, there will likely be a metallic taste in the water, a cloudy appearance, or black carbon particles in the beginning. Go with the manufacturer’s instructions and take the time to drain 2-3 full tanks before using RO water.

5. Not Checking for Leaks 24 Hours Later

Even if the system seems leak-free right after installation, slow drips may occur some hours later when the pressure stabilizes. If you leave the cabinet closed for some days, you might discover water damage soon after.

To prevent any issues, recheck every tubing connection, adapter, and fitting 24 hours after the reverse osmosis water filter installation is complete. Place a dry paper towel under each connection overnight: they’ll show even the tiniest of drips. Catch the leaks early, and you’ll be able to prevent mold growth, cabinet wood swelling, and expensive maintenance.

6. Forgetting to Open the Tank Valve

Tank-style reverse osmosis systems need their storage tank valve open during operation. If you leave the valve closed after installation, it prevents proper water flow to the faucet. The system may then seem broken even if everything was correctly installed.

Once you turn the water supply on again, ensure that the tank valve and tubing direction are aligned. A little oversight like this can lead to a lot of frustration and wasted time.

7. Installing a Tankless System Without a GFCI Outlet

Tankless reverse osmosis systems function with electric pumps, which is why they need a GFCI outlet nearby. If you skip this part, there will be a major electric safety hazard in your home. Don’t rely on extension cords either: they’re not meant for permanent installations.

If your sink cabinet isn’t near any GFCI outlets, call a licensed electrician to install one before starting your RO system setup. It will cost a fair bit, but the initial cost is cheaper and more convenient than dealing with safety risks and damage later on.

When to Call a Plumber Instead

You might be able to handle an RO system installation, but part of the process is knowing when to ask for help. Here are the situations where calling a plumber is necessary to prevent expensive mistakes or major damage:

• You need to drill into granite, quartz, or natural stone countertops.
• Your plumbing system is old and outdated (maybe with galvanized pipes).
• The shutoff valves are not standard or damaged in some way.
• There is no GFCI outlet near your required location for a tankless RO unit.
• The landlord or inspector insists upon professional installation.
• You don’t feel equipped to handle the work.

Troubleshooting After Installation

Leak at Feed Adapter or Fittings

• Tighten each fitting around a quarter turn beyond hand-tight.
• If the leak is still there, disconnect the fitting and check the placement of the washer and O-ring.
• Re-install the system carefully and try running the water again.

Slow Flow at RO Faucet

• For tank systems, the tank pressure should be 5-7 psi when empty. If the pressure is too low, use a pump to get it within the right range.
• For tankless models, clogged pre-filters or kinked tubing are usually the reason behind a slow flow.
• Inspect the system closely for these issues and correct them.

Milky or Cloudy Water

Getting cloudy water is normal and expected during the first 24–48 hours after a reverse osmosis filter installation. It’s usually because of trapped air and should clear up in about two days to a week. If the cloudiness is still there after a week, get in touch with the manufacturer’s technical support.

Error Code on Display (Tankless Only)

Check the owner’s manual for error code definitions. The most common ones are:

• E1: Low feed pressure
• E2: High incoming TDS
• E3: Membrane replacement required

For more guidance about clean drinking water and residential water quality, take a look at the homeowner resources provided by the Centers for Disease Control and Prevention (CDC).

Maintenance Schedule After Installation

Frequently Asked Questions

Can a complete beginner install an RO system?

As long as you can follow instructions and use a wrench, RO water filter system installation is possible for any beginner. There’s no plumbing experience necessary if you have the correct outlet already installed.

How long does installation really take?

Installation usually takes 2-4 hours for a tank-style system and 1.5-5 hours for a tankless model. If you’ll need a countertop hole, it’ll take additional time to drill one.

What if I rent? Can I still install an RO system?

Renters require permission from their landlord before installing an RO system. Drilling a hole for the faucet may not be allowed, so consider countertop RO setups as a suitable alternative.

Does DIY installation void the warranty?

No, illi water systems are developed especially for DIY installation. Our systems come with a warranty that covers all manufacturing defects.

What if I damage something during install?

Contact illi water’s customer support immediately in case of any damage. We stock most of the replacement parts for our current systems. It’s quite affordable to replace any tubing or fittings in our RO systems.

Can I install a tankless system without an electrician?

You’ll need a professional electrician to install a GFCI outlet under the sink for your tankless system. If the required outlet is already there, an electrician is not absolutely required.

You’ve Got This! Ready to Start?

 Now that you have learned how to install a reverse osmosis system, you know it is really not that complicated. In fact, it is one of the most approachable DIY plumbing projects for many homeowners. Most of illi water’s clients complete the installation in the span of an afternoon, armed with just the basic tools and included instructions.

If you follow this guide down to the T, you’re ready to attempt the installation. Just be sure to take your time and double-check every fitting and tubing connection.  Your reward for all the hard work? A high-performing RO system providing years of clean, filtered, great-tasting water with just minimal maintenance each year.
